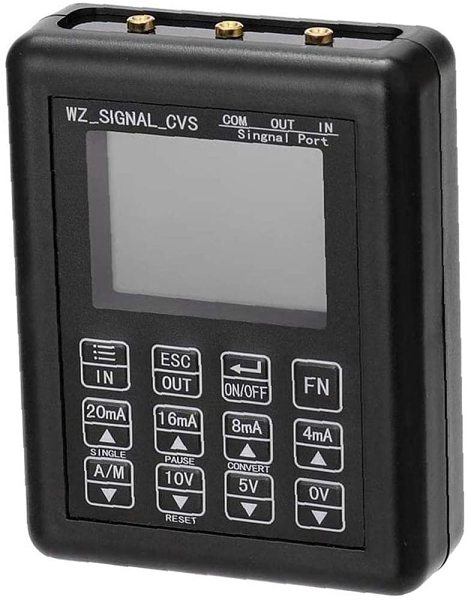

4-20mA Signal Generator Current Voltage Transmitter Calibrator Signal Source

4-20mA Signal Generator Current Voltage Transmitter Calibrator Signal Source

Item NO.: 2555627
Inquiry

Detail | Q&A | Shpping & Payment | Youtube | Gallery | Intellectual Property

Features:

Active current output: range: 0-24mA; resolution: 0.01mA; maximum load: 750Ω

Passive current output: range: 0-24mA; resolution: 0.01mA; external power supply up to 30V.

Voltage output range: 0-12V; resolution: 0.01V; maximum current 30mA

24V voltage output: drive current: 24mA.

Current input measurement: range: 0-24mA; resolution: 0.01mA; input impedance: 100Ω

Voltage input measurement: range: 0-30V; resolution: 0.01V; input impedance: 2.5MΩ

Working environment: 0°C-50°C

Description:

VC conversion function:

This function is mainly used for some temporary voltage and current conversion, such as converting 0-10V input to 4-20mA output.

VC active conversion: convert voltage signal input into active current signal output VC passive conversion: convert voltage signal input into reactive current signal output

C-V conversion: convert current input signal into voltage signal output

The functional rules include the following parts: VC transfer switch, transfer mode, voltage upper limit, voltage lower limit, current upper limit, current lower limit and over-range.

Internal reverse and overcurrent protection, the protection voltage is 30V.

Built-in single 3.7V lithium battery power supply; according to the usage, the use time will be different (continuous output 20mA may exceed 6 hours).

When there is an internal battery voltage prompt, when the (UV lamp) under voltage indicator is on, please turn off the charging.

Do not use it for a long time, please charge it every two months.

Charge with micro USB.

The operating temperature range is 0 to 50 degrees Celsius.

Package Included:

1 × Signal Generator Host

3 × Test Lines
